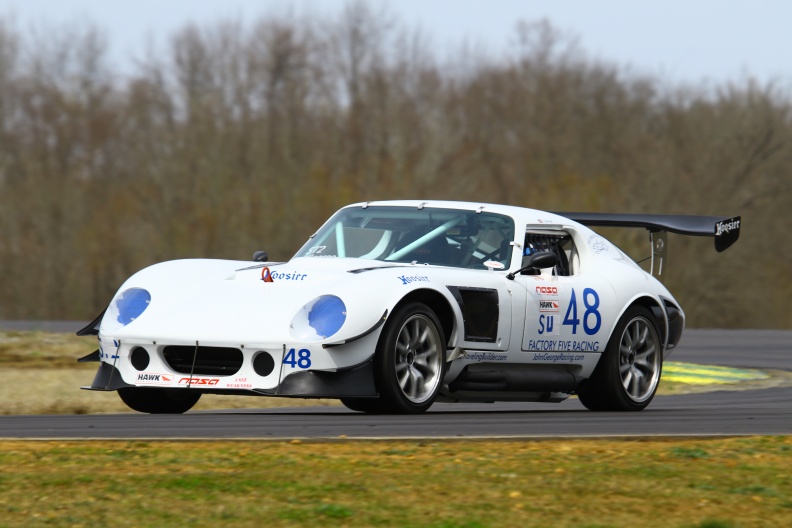

FFR#48 Gen3 type65 R Coupe ST2

• Used complete 2011-2014 F150 engine (19K miles) ~ $2500
  • upgraded valve springs M-6513-M50BR (quantity = 2)
  • Ford 4V 5.0L Coyote valve spring compressor Install tool  ST-105
• Oil – Mobile 1 Synthetic 0w40  8 QT for Aviaid Drysump
• Transmission: Tremec TKO 600 Road Race with .82 5th $2450 TCET-4617
• ECU (choose one)
  • AEM – $3871.19
    • Infinity Series 7 ECU 30-7101 $2396.95
    • Plug and Play harness for coyote 30-3813 $979.24
    • O2 Sensors (2) 30-2001 $170
    • MAP sensor 30-2130-50 $150
    • Air Temp sensor 30-2010 $57
    • sub harness for map/air 30-3510-00 $58
    • Ford gas pedal BR3Z-95836-D $60
  • FORD – $2374
    • Coyote control pack $1674 Ford Racing fms-m-6017-a504v and Install Instructions
    • SCT X4 programmer $400
    • SCT Racer tuning software $300
• FORD RACING Parts ($1195.7)
  • pilot bearing $9.97 Ford Racing fms-m-7600-b
  • flywheel $393.97 Ford Racing fms-m-6375-r00a
  • flywheel bolts $11.97 Ford Racing fms-m-6379-b
  • pressure plate bolt kit $13.97 Ford Racing fms-m-6397-a46
  • bellhouse $403.97 Ford Racing fms-m-6392-m46
  • bellhouse bolts $34.97 Ford Racing fms-m-7771-a
  • bellhouse separator plate $34.97  Ford Racing fms-m-7007-a
  • throwout bearing $51.97 Ford Racing fms-m-7548-a
  • clutch fork $70 M-7515-A Fortes Coyote Clutch fork
  • Speedo recalibration $169.97 Ford Racing fms-m4209adptac
• Aviaid dry sump oiling system $3500 (ask for John @ Aviaid 818-998-8991)
  • 4 stage external dry sump pan with coyote mounting bracket (AC compressor)
  • 9qt or 2.5 gallon oil reservoir 7.5″ x 22″
  • steel pan with 3 sumps
  • 10440801-270 BELT
  • remove old stock ford oil pump drive gear
  • ATI balancer and assorted drive gears/belts
  • Moroso Remote Filter Adapters 23687 $129
  • Vibrant Performance O-Ring to AN Adapter Fittings 16836 $7.95
  • EAR-981410ERL Fitting, External Hex Head Port Plug with O-Ring Seal, -10 AN
  • assorted -12AN / -10AN fittings/hoses
• headers – 4into4 FFR $850
• Clutch & Pressure Plate kit – $455 RAM 98882T (10.5″, 26 spline)
• fuel line fittings $12.97 Russell rus-640853
• power Steering pump/bracket –KRC Coyote BOSS302 pump and pulley KIT 66302050 $558.36 (KRC sells a pump with builtin reservoir as of 10/10/17, get that instead of this)
  • power steering reservoir $63.05 KRC91500000
  • power Steering KRC Flow valve restrictor ID:6 KRC 25306000$25.85
  • -10AN 45deg to barb $13.97 Summit Racing® Twist-Tite Swivel Hose Ends SUM-220708-B
  • spare Power Steering Belt for KRC BOSS302 – 5 rib 28″ GDY 4050280 $9.97
• starter $179 NAPA RAY 2449317
• serpentine belt alternator-waterpump 64″ $24.99 GATES K060640
• alternator from F150 (mustang alternator pulley does not line up! different timing chain cover moves alternator out!) $384.77 Motorcraft GL8673, or $70 from junkyard
• alternator bolt M10x40mm $3.03 Ford Part# W715094S437
• alternator bolt M10x90mm $3.11 Ford Part#W715092S437
• fuel pressure regulator $69.97 ACDELCO GF822 (2004 corvette fuel filter/regulator)
• Cooling hose 90deg fitting to heater core  Gates 28504 – Quantity = 2, $15.30 each
• Heater core $149.97 Summit Racing® Automotive Heaters SUM-991102-1
• Defrost kit $28.97 Summit Racing® Heater Defroster Kits SUM-991104
• Right side net $129.95 Simpson C5R Driver Window Nets DN.C5R.RP
• Window net $60 Schroth Racing SR09053-0
• Window net mounting $23.95 Racequip Bottom Bar Strap On Window Net Mount Kits 705005
• Window net install kit $27.99 RJS Window Net Installation Kits 100021
• Race rear view mirror $59.99 Longacre Rear View Mirrors 22534
• Windshield wiper kit $188.01
  • Wexco 4R2.12.R110D 2.5″ Wiper Motor $107.47
  • Wexco 200722 8″ – 11″ Wiper Arm $53.90
  • Rain-X RX30220 Weatherbeater Wiper Blade, 20″ (Pack of 1) $9.69
  • Universal Windshield Wiper Motor 3 Position Switch w/ Knob GM Rat Street Hot Rod $16.95
• Air Filter $55.99 K&N 5149 6.5″ tall, 4″ inlet
• Spectre Performance Intake $70.81
  • Spectre Performance 9741 Black 4″ x 3.5″ Intake Coupler
  • Spectre Performance 9771 Black 4″ Intake Coupler
  • Spectre Performance 9799 4″ 90 Degree Mandrel Intake Tube
  • Spectre Performance 9705 4″ Polished Aluminum MAFS Adapter Tube
• Factory Five 2015 IRS $2499
  • need to purchase separate from FFR: FORD RACING 2015-2017 MUSTANG IRS LOADED DIFFERENTIAL 3.73 Torsen M-4001-88373
  • need to purchase separate from FFR: 2015 Ford Mustang Knuckle Right FR3Z-5B758-B
  • need to purchase separate from FFR: 2015 Ford Mustang Knuckle Left FR3Z-5B759-B
  • spare part: Hub assembly left FR3Z-1104-B
  • spare part: Hub assembly right FR3Z-1104-B
  • Oil – 1.5L of 75w90 + 4fl oz friction modifier
  • Diff cooler: Derale 15830 Econo-Cool Remote Cooler $110
  • Diff cooler pump (super loud!): 12V Electric Oil Pump Diff Cooler Turbo Scavenge Conversion Gear Pump $70
• LED H4 headlight bulb –  40W 6,000K CREE LED Headlight Conversion Kit 8,000LM Works Underwater Rainproof driver (H4) IDEAPRO H4
• Headlight kit – Pilot Automotive WI-HL7A Head Lamp Conversion Kit $38.12
• Steering Wheel – Grant #470 151-14 – Grant Formula-1 11.5 in. Diameter $58.33
• Battery – Duralast Gold 96R-DLG
• Brakes
  • front and rear left calipers wilwood 120-13236 $258.00ea
  • front and rear right calipers wilwood 120-13235 $258.00ea
  • Quantity = 2, front radial caliper to spindle mount kit wilwood 250-6249 $136.4.00ea
  • Quantity = 2, rear radial caliper to spindle mount kit wilwood 250-6309 $63.82ea
  • custom rear bracket (lasercut from FFR)
  • Quantity = 1, Bracket/Spindle Mounting Bolt Kit Wilwood 230-10647 $30.49ea
  • Quantity = 2, 18″ Flexline braided brake line Kit Wilwood 220-12092 $69.39ea
  • Quantity = 2, front and rear pads Hawk DTC-70 HB521U.800 DTC-70 $187.84 or pagid 2555 RS 29 $273.6ea or Pagid 2555 RSL1 (more agressive enduro pad)
  • Quantity = 2, front rotors – 2011 Mustang 336mm or 13.22″ – Bendix PRT6035 $37.97ea, alternate parts: Centric 120.61098,  NAPA UP 880811 (336mm od, 48.1mm height, 30.0mm thickness)
  • Front and Rear rotors – full floating 2 piece Stoptech
    • Left Hat – 37.328.5413
    • Right Hat – 37.328.5414
    • Left Rotor w/Hardware – 31.536.1101.87
    • Right Rotor w/Hardware – 31.536.1102.87
  • Front Master Cylinder – Wilwood 7/8″ bore master cylinder kit 260-10374
  • Rear Master Cylinder – Wilwood 1″ bore master cylinder kit 260-10375
• Wheels (no front spacer, 2″ hub-centric rear spacer)
  • XXR 531 18×11 Rims (5-100 5-114.3 lug) +20mm offset (for Hoosier 315 A7) – cheap but heavy
  • FR500 17×10.5 (for Hoosier 245 A7)
  • Enkey RPF1 18×10.5 (5-114.3 lug) +15mm offset – expensive but light

---

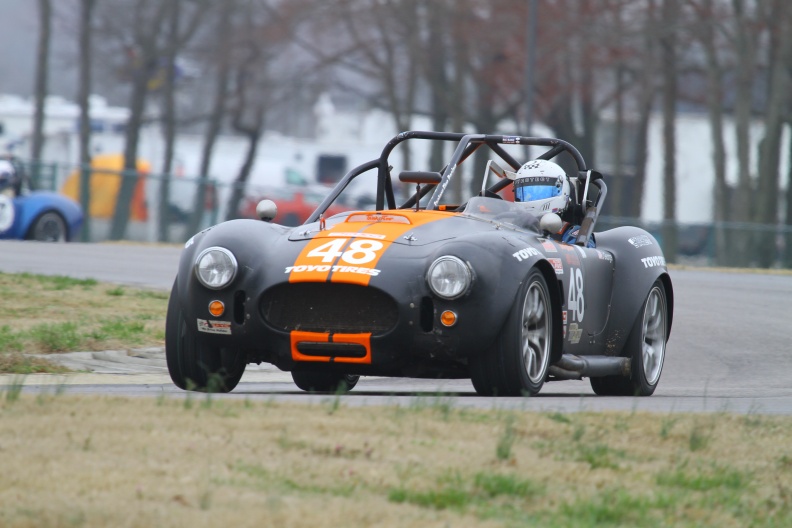

FFR Challenge Car ST2 Spec – 2011-2014 F150 Coyote Engine

• Used complete F150 engine (19K miles) ~ $2500
• Oil – Mobile 1 Synthetic 0w40  8QT for Aviaid Drysump (9qt without accusump, 12qt with accusump)
• FORD RACING Parts ($2694.7)
  • ecu control pack $1498.97 Ford Racing fms-m-6017-a504v and Install Instructions
  • pilot bearing $9.97 Ford Racing fms-m-7600-b
  • flywheel $393.97 Ford Racing fms-m-6375-r00a
  • flywheel bolts $11.97 Ford Racing fms-m-6379-b
  • pressure plate bolt kit $13.97 Ford Racing fms-m-6397-a46
  • bellhouse $403.97 Ford Racing fms-m-6392-m46
  • bellhouse bolts $34.97 Ford Racing fms-m-7771-a
  • bellhouse separator plate $34.97  Ford Racing fms-m-7007-a
  • throwout bearing $51.97 Ford Racing fms-m-7548-a
  • clutch fork $70 M-7515-A Fortes Coyote Clutch fork
  • Speedo recalibration $169.97 Ford Racing fms-m4209adptac
• headers – 4into4 StainlessHeaders purchased from Fortes $1315 shipped
• clutch $282.97 RAM HDX Clutch Kits 88951HDX
• Clutch & Pressure Plate kit $120 NAPA NCF 1107042 (1993 Ford mustang)
• fuel line fittings $12.97 Russell rus-640853
• power Steering pump/bracket –KRC Coyote BOSS302 pump and pulley KIT 66302050 $558.36
  • power steering reservoir $63.05 KRC91500000
  • power Steering KRC Flow valve restrictor ID:6 KRC 25306000$25.85
  • -10AN 45deg to barb $13.97 Summit Racing® Twist-Tite Swivel Hose Ends SUM-220708-B
  • spare Power Steering Belt for KRC BOSS302 – 5 rib 28″ GDY 4050280 $9.97
• power steering pump $93.79 A-1 Cardone 20281P1 (1996-2004 mustang)
• power steering high pressure hose reuse old, or buy stock 1992 Ford Mustang $32.99 Part # 71835
• serpentine belt power steering 34.5″ $18.99 GATES K060345
• starter $62.79 2013 Ford F150 5.0L Starter WPS / POWER SELECT 6646N
• serpentine belt alternator-waterpump 64″ $24.99 GATES K060640
• alternator from F150 (mustang alternator pulley does not line up! different timing chain cover moves alternator out!) $384.77 Motorcraft GL8673, or $70 from junkyard
• alternator bolt M10x40mm $3.03 Ford Part# W715094S437
• alternator bolt M10x90mm $3.11 Ford Part#W715092S437
• fuel pressure regulator $69.97 ACDELCO GF822 (2004 corvette fuel filter/regulator)
• oil pan $392 Champ CP4700
  • oil pan pickup $81.20 Champ 4700SB
  • oil pan gasket $49.97 Felpro fel-os30840r
  • Moroso 22738 20mm x 1.5mm Drain Plug Moroso 22738
  • Moroso Remote Filter Adapters 23687 $129
  • straight -10 AN hose end (quantity 4 $9.97 each)
  • Vibrant Performance O-Ring to AN Adapter Fittings 16836 $7.95
  • Stainless steel -10 AN hose (10ft $64.97)
• Cooling hose 90deg fitting heater core bypass (from left side to right side heads) Gates 28504 – Quantity = 2, $15.30 each
• Air Filter $55.99 K&N 5149 6.5″ tall, 4″ inlet
• Spectre Performance Intake $70.81
  • Spectre Performance 9741 Black 4″ x 3.5″ Intake Coupler
  • Spectre Performance 9771 Black 4″ Intake Coupler
  • Spectre Performance 9799 4″ 90 Degree Mandrel Intake Tube
  • Spectre Performance 9705 4″ Polished Aluminum MAFS Adapter Tube
• Aviaid dry sump oiling system $3500
  • 4 stage external dry sump pan with coyote mounting bracket (AC compressor)
  • 9qt or 2.5 gallon oil reservoir 7.5″ x 22″
  • steel pan with 3 sumps
  • 10440801-270 BELT
  • remove old stock ford oil pump drive gear
  • ATI balancer and assorted drive gears/belts
  • Moroso Remote Filter Adapters 23687 $129
  • Vibrant Performance O-Ring to AN Adapter Fittings 16836 $7.95
  • EAR-981410ERL Fitting, External Hex Head Port Plug with O-Ring Seal, -10 AN
  • assorted -12AN / -10AN fittings/hoses
• Accusump $544.66
  • Engine Oil Accumulator, 3 Quarts, 22.00 in. x 4.25 in$241 Canton CTR-24-016
  • Oil Accumulator Mounting Brackets $17.00 Canton CTR-24-200
  • ACCUSUMP EPC VALVE KIT 35-40PSI $222.00 Canton CTR-24-273X
  • Fitting, Adapter, AN Tee with Female Swivel On Run -10 AN $31.97 EAR-926110ERL
  • Fitting, Adapter, Straight, Male -10 AN to Male 1/2 in. NPT $4.75 SUM-220047
  • Fitting, Hose End, 90 Degree, -10 AN Hose to Female -10 AN $17.97 SUM-220087
  • Fitting, Hose End, Straight, -10 AN Hose to Female -10 AN $9.97 SUM-220090
• LED H4 headlight bulb –  40W 6,000K CREE LED Headlight Conversion Kit 8,000LM Works Underwater Rainproof driver (H4) IDEAPRO H4
• FR500S ABS (pics of install)
  • 2007-2009 Ford Mustang GT500 ABS module (HCU – ebay has item, connector on back not on side, do not buy newer year model) $200
  • FR500S abs module M-2353-A (not sure if needed, calibrated for slicks, will try it in April 2016) $293.25
  • ABS Connector $51.24 Motorcraft WPT1356 Wire Assembly (relocated wire 10 to 6 and removed wires 20, 24, 34 & 39 that are not required
  • Tube nut fitting – 2 of 10M x 1.0 bubble flare to 3/16 line BLF-39C-5 (5 pack)
  • Tube nut fittings – 2 of 12M x 1.0 bubble flare to 3/16 line BLF-48C-5 (5 pack)
  • Tube nut fittings – 2 of 12M x 1.0 bubble flare to 1/4 (6mm) line BLF-46C-5 (5 pack)
  • Quantity =2 Adapter female 7/16 -24 inverted to male 3/8-24 inverted BLF-23C
  • Quantity =2 7/16-24 inverted flare nut for 1/4″ tube BLF-13C-5 (5pack)
  • 3/16 brake line 25ft – AGS Poly Armour Brake Line PAC-325
  • 1/4 brake line 25ft – AGS Poly Armour Brake Line PAC-425
  • Front wheel sensors (2 of them, $34.79 each) BRAB291
  • Front sensor mounts for FFR spindles – $45 made by Russ Thompson
  • Rear wheel sensors (for 8.8 solid SN95 axles – 2 of them, $32.79 each) BRAN290
  • Wheel rear sensors (2015 IRS, 2 of them,$11.85) BRAB406
• Wilwood 12.88 front brake kit $1350
  • Race Brake Pads – Hawk DTC-60 HB645G.490 $172.48
  • Spare CENTRIC 12061045(120.61045) Right Rotor (1998 FORD MUSTANG COBRA 4.6L 281cid V8 FI (V) DOHC)
  • Spare CENTRIC 12061044(120.61044) Left Rotor (1998 FORD MUSTANG COBRA 4.6L 281cid V8 FI (V) DOHC)
  • Spare caliper – right side $277.71 Wilwood 120-13436-rd
  • Spare caliper – left side $277.71 Wilwood 120-13437-rd
  • 45deg brake caliper inlet -3AN to 1/8″-27 NTP fitting $15.21 Wilwood 220-6412
  • Spare 1.1″ thick rotor (Right) Wilwood Disc Brakes 160-12961 – Wilwood GT Series Directional Vane Rotors $184.39
  • Spare 1.1″ thick rotor (Left) Wilwood Disc Brakes 160-12962 – Wilwood GT Series Directional Vane Rotors $184.39
  • Spare rotor hat Wilwood Disc Brakes 170-12050 – Wilwood GT Series Fixed Mount Rotor Hats $157.95
• Factory Five 2015 IRS $2499
  • FORD RACING 2015-2016 MUSTANG IRS LOADED DIFFERENTIAL 3.55 M-4001-88355
  • 2015 Ford Mustang Knuckle Right FR3Z-5B758-B
  • 2015 Ford Mustang Knuckle Left FR3Z-5B759-B
  • Spare: Hub assembly left FR3Z-1104-B
  • Spare: Hub assembly right FR3Z-1104-B
  • Rear brakes (custom Wilwood to spindle bracket from FFR – same calipers as front – 6piston)
    • • caliper – right side $277.71 Wilwood 120-13436-rd
      • caliper – left side $277.71 Wilwood 120-13437-rd
      • (quantity = 2) 45deg brake caliper inlet -3AN to 1/8″-27 NTP fitting $15.21 Wilwood 220-6412
    • Spare CENTRIC 12061045(120.61045) Right Rotor (1998 FORD MUSTANG COBRA 4.6L 281cid V8 FI (V) DOHC)
    • Spare CENTRIC 12061044(120.61044) Left Rotor (1998 FORD MUSTANG COBRA 4.6L 281cid V8 FI (V) DOHC)
  • Oil – 1.5L of 75w90 + 4fl oz friction modifier
• Front Master Cylinder – Wilwood 7/8 bore master cylinder kit 260-10374
• Rear Master Cylinder – Wilwood 7/8 bore master cylinder kit 260-10374
• Front master cylinder Wilwood 7/8
• Rear master cylinder Wilwood 13/16

---

FFR Challenge Car 2012+ Spec Parts

• 3.08 rear end gears highly suggested
• Ford 302 Shortblock
• Eagle Steel internal balance Crank – ESP-430230015090
• Flywheel internal balance – FMS-M-6375-D302B
• Harmonic internal balance Balancer – PIO-872034
• optional – Cometic steel headgaskets – CGT-C5511-040 (another headgasket comes with TFS engine kit)
• Oil Pan – Canton Racing Road Race Series Wet Sump Oil Pans 15-630S
• Oil Pump FMS-M-6600-M50
• Pilot Bearing FMS-M-7600-A
• gaskets:
  • oil pump to block FEL-72516
  • optional – intake manifold to head FEL-MS90361 (comes with TFS engine kit)
  • oil pan FEL-OS13260T
  • timing cover/water pump FEL-TCS45450
  • rear main seal FMS-M-6701-B302
• Trickflow top engine kit TFS-K514-360-SPC (call Eddi Pinegar @ Trickflow 330-630-1555, 10% discount for FFR racers)
  • arp head bolts
  • 24lb mass air sensor with housing
  • pushrods
  • efi throttle body
  • 7/16 studs rocker arms
  • oil fill kit
  • valve covers
  • camshaft
  • aluminum assembled heads
  • 24lb injectors – set of 8
• Factory Five Suspension Kit FFR#15415
  • spindles
  • bearing hub assemblys
  • SAI upper control arm weld-in bracket
  • swaybar with mounting hardware
• Brakes

  • 1998 FORD MUSTANG COBRA 4.6L 281cid V8 FI (V) DOHC
     		Part Number 		Part Type
    CENTRIC		12061045(120.61045)	Right Rotor
    CENTRIC		12061044(120.61044)	Left Rotor
    RAYBESTOS	FRC10603		Right Caliper with Bracket
    RAYBESTOS	FRC10604		Left Caliper with Bracket


---

 Misc Parts

Challenge Series Tow Hooks – NASA requirement – FFR#14631

Throttle cable – 1991 Ford F150, Advance Auto # 16650

Air Filter – K&N RU-3130

Spark Plugs (Trickflow heads) – AC FR3LS, Autolite 3924, Champion RC9YC, NGK-FR5

Trickflow package Misc Parts

Hydraulit roller cam – TFS-51403001

Heads – TFS-5F510005-M61

Pushrod guideplates – TFS-30400624-8

Head Gasket – Felpro 10112

Lower Intake Gasket – FEL-MS90361

Upper Intake Gasket – TFS-51522009-4

Exhaust Gasket – Felpro 1415

Timing cover gasket – FEL-TCS45450

Oil pan gasket – FEL-OS13260T

Distributor – 1992 mustang GT, Autozone 30-2892MA (steel gear with module)

Fuel line fittings:

Russell 640870 #6 FORD EFI Return FUEL FITTING

Russell 640900 #6 FORD EFI PRESSURE SIDE

Fuelpump sock/strainer – FS111

Short oil filter – Bosch 3321

One Piece Lower Radiator Hose – 1994-2001 Dodge Ram Upper Radiator hose 5.9L or 5.2L – Autozone XL1023, Dayco 71713

Front Upper Control Arm – SPC 92142  (5″ cross shaft only – SPS-93400, Offset pivot bracket SPS-92025)

Front Upper Control Arm balljoint – Moog K772

Brakes:

Front – 1998 Mustang Cobra 4.6 DOHC

Wheel bearing & hub assembly – TIMKEN  513115

Master Cylinder size = 13/16 Wilwood 260-10373 Wilwood Master Cylinder

Rotor Right – Centric 12061045

Rotor Left – Centric 12061044

Caliper Right – Raybestos FRC10603

Caliper Left – Raybestos FRC10604

Banjo bolt – M10x1  long (Earl’s 977517 For .425 in. Banjo Height Thread Size 10mm x 1.0 Single Hole Dia. 10mm w/Crush Washers)

Pads – Hawk HB111G.610 DTC-60, or Carbotech XP10 CT412

Rear – 1988 Ford Thunderbird 5.0L (.42mm caliper size)

Master Cylinder size = 5/8 Wilwood 260-10371 Wilwood Master Cylinder

Rotor – (slot bracket to caliper 1/8″ to move caliper out) CENTRIC Part # 12161040

Caliper Left – A-1 CARDONE Part # 18B4509

Caliper Right – A-1 CARDONE Part # 18B4508

Caliper bracket to axles – BreezeAutomotive #70590

Pads – Hawk HB580G.627 DTC-60, or Carbotech XP12 CT347

Alt Rear – 1994 Mustang GT (.38mm caliper size)

Rotor – Duralast 54017

Caliper – Duralast C394

Caliper – Duralast C395

Pads – Hawk HB183U.585 DTC-70, or Carbotech XP12 CT627

Serpentine belt – 5060695

Ford 8.8 Trax lok kit –  M-4700-B

Clutch & Pressure Plate kit – NAPA NCF 1107042 (1993 Ford mustang)

Alternate Clutch – RAM 255 (solid, burns up easy if slipped – 2.5lb) or RAM 301M (more for street – 5.3lb)

Alternate Clutch Pressure Plate – RAM 854 (12lb)

Headlight kit – Pilot Automotive WI-HL7A Head Lamp Conversion Kit $38.12

H4 LED bulbs – Ideapro 40W 4000LM G5 H4 Hi/Lo

Steering Wheel – Grant #470 151-14 – Grant Formula-1 11.5 in. Diameter $58.33

Steering Rack  – Autozone #64163 2.25 turns lock to lock

Fuel cell replacement bladder – FS-RB122A 22 gal Fits PC122A – 34″ x 18″ x 9.5″ (no side fill)

Fuel cell sending unit – ATL KS210-9 float style 9″ probe or VDO Gauges 224-222
